S2-S69C

S-Series Speakers

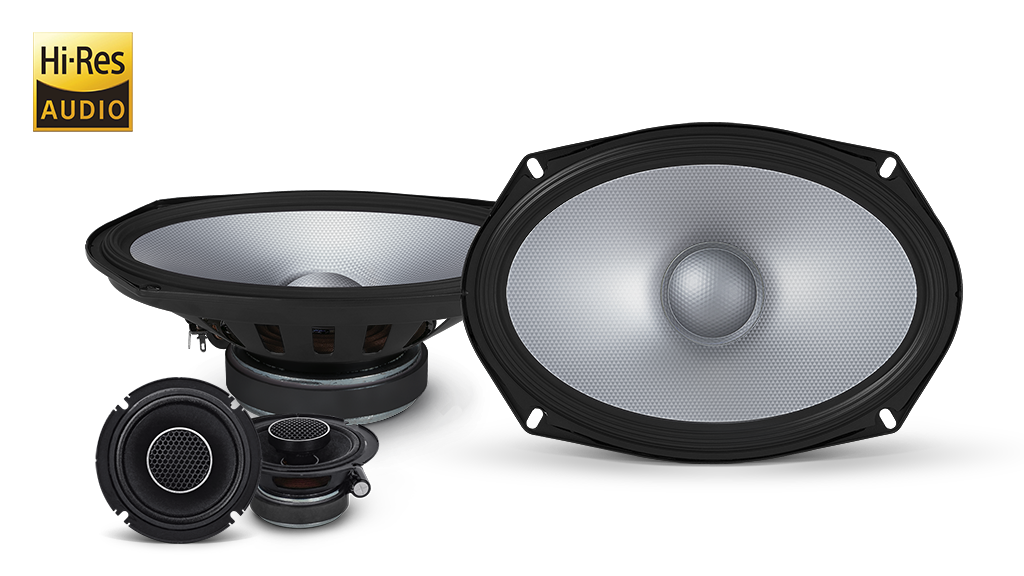

S2-S69C

S-Series 6×9 Inch Component + 3″ Coaxial Hi-Res Audio Component Speaker System

$299.95

Not available online

SKU: S2-S69C OWNERS MANUAL: S2-S69C

Experience the rich detail and sonic excellence of Alpine’s next-generation S-Series loudspeakers — now featuring Hi-Res Audio for the first time.

The S-Series continues to establish the benchmark in sound quality and value by producing impressively detailed loudspeakers that accurately represent true studio-level Hi-Resolution audio faithful across the entire frequency bandwidth.

Alpine innovation continues with all-new technology and engineering in the construction and materials adopted in the new S-Series.  The exclusive design composite glass fiber hybrid cone is extremely rigid and lightweight, which further unites with Alpine’s patented HAMR surround to achieve increased control and excursion of the woofer diaphragm, resulting in pure, punchy sound and powerful bass at high SPL.

The S2-S69C now presents even greater value and increased vehicle compatibility into modern SUV and Ute vehicles that feature large 6×9” door speakers with a 3” Mid-driver or tweeter set within the dashboard. Moreover, the 3” mid-tweeters compact size also suit custom-fit installation into certain factory tweeter locations of other vehicles.

The natural sounding pulp cone 3″ Mid-range combined with the 1” soft dome tweeter delivers an incredibly smooth and detailed mid to high frequency response that’s extended right up to 40kHz — so you can hear the finest nuances in your music.

With an extensive range of component and coaxial speakers, the new S-Series is the most impressive and versatile speaker line-up ever, providing system configuration flexibility and installation compatibility into virtually any vehicle type.

Take your in-car sound to the next-level with the new S-Series loudspeakers rivalling performance far beyond their modest price-point.

KTE-S69G Grilles pictured are sold separately.

AN ALL-NEW AUDIOPHILE EXPERIENCE FOR S-SERIES

HiResAudiologoWeb

____

What is Hi-Res Audio?

With Hi-Res Audio streaming services and music downloads available you can now appreciate a higher sampling rate than in CD’s for the playback of music, which brings your favourite music tracks to life with extreme clarity. Alpine’s Hi-Res Audio Certified Head Units, Amplifiers and Digital Signal Processors are painstaking engineered to deliver faithful audio reproduction from high resolution sources and recordings with sample rates up to 192kHz/24Bit. These components are optimised for high definition playback and breathtaking performance, true to the artists original recording.

Why Hi-Res Audio?

Listening to Hi-Resolution Audio allows you to feel every emotion and hear every nuance; every detail of your favourite artist’s original studio performance is reproduced to perfection. Hi-Res Audio provides absolutely no distortion for the ultimate listening experience.

Why Hi-Res Audio Certified Speakers?

Hi-Res Audio goes beyond the limits of ordinary speakers. To accurately render the sound of Hi-Resolution sound sources and recordings in true high definition the reproduction of an extended dynamic frequency range right up-to 40kHz is paramount.

Hi-Res Audio Certified

All-New for S-Series, Hi-Res Audio Certification brings a whole new dimension of sonic excellence to your everyday drive. With an impressive extended dynamic range, playing upper harmonics all the way up to 40kHz, your tracks will come alive with a level of detail and nuance faithful to that of the original recording.

HAMR Surround

Not only does Alpine’s patented High Amplitude Multi-Roll (HAMR) surround maintain full control over the cone at any stage of excursion for high SPL. It’s ability to far exceed the maximum linear excursion of regular domed surround allows for beautifully pure sound and punchy bass.

Glass Fiber Composite Woofer Cone

The door woofer features an all-new glass fiber composite cone, which due to its directionally weaved construction is engineered to be far stronger than a traditional oval cone diaphragm. The resulting rigidity coupled to glass-fiber’s innate lightness results in highly controlled cone excursion producing excellent response and audio reproduction.

Natural Sound 3″ Mid-Tweeter Configuration

Featuring a highly detailed 3” Coaxial Mid-Tweeters allows for versatile installation and significantly improves sound quality, as well as staging and imaging. The S2-S69C is perfect for modern SUVs and Ute sound upgrades by replacing the factory dashboard mid-tweeter and 6×9″ door woofer. The compact size of the 3” Mid-Tweeter also allows for custom-fit applications behind factory tweeter locations.

Large Magnet Structure

The large strontium magnets housed on the back of S-Series speakers mean business. Combined with large voice coils and Alpine’s patented HAMR Surrounds, increase cone excursion and the force of the driver to provide louder, punchier sound.

Protective Grilles (Sold Separately)

Protect your new S-Series speakers, these durable mesh speaker grilles are available for several speakers in the S-Series range and are packaged in pairs. See KTE-S69G (Sold Separately)

Features

Woofer

  • 6×9″ (160cm x 240cm) Lightweight Glass Fiber Composite Speaker
  • HAMR (High Amplitude Multi-Roll) Surround
  • Large 35mm Voice Coil
  • Magnet Material: Strontium Ferrite
  • Grill sold separately: KTE-S69G

Mid-Tweeter

  •  3″ (79mm) Pulp-Cone Coaxial Speaker with 1″ Extended-Range Soft Dome Tweeter
  • Magnet Material: Strontium Ferrite
  • Tweeter Grill: Perforated Net

Crossover Network

  • Woofer: Integrated Copper Air-Coiled Wound Inductor
  • Mid/Tweeter: High Grade Audio Poly Capacitor

Specifications

Power Handling

  • Peak Power: 260 Watts
  • RMS Power: 85 Watts (CTA-2031 Compliant)

Dimensions Woofer

  • Frame 237 mm x 161mm
  • Cutout Diameter: 242mm x 152mm
  • Mounting Depth: 74.5 mm
  • Mounting Height: 7.3 mm
  • Magnet: 100.0 mm

Dimensions Mid-Tweeter

  • Frame: 79mm
  • Mounting Diameter: 61.4mm
  • Mounting Depth: 10.2mm
  • Magnet: 50mm
  • Height: 45.6 mm

General

  • Frequency Range: 55 Hz – 40 kHz
  • Impedance: 4 Ohms
  • Sensitivity: 90 dB SPL (1W @1m)
  • Recommended Amplification: up to 85W RMS per channel
