Alpine Status brings the engineering philosophy and design principles of the third-generation, Ultra High-Resolution AlpineF#1Status system to a more accessible level of high-performance audio. Designed to deliver exceptional sound quality with greater flexibility, Alpine Status components can be integrated into a complete system or enjoyed individually as standalone upgrades.

At the heart of the range, the 10-inch HDZ-W10 subwoofer combines incredible power handling with precision-engineered construction to deliver deep, controlled and acoustically accurate bass. Rated at 800W RMS and 2,400W peak power, it features a pulp-mica cone, carbon-fibre dust cap and HAMR multi-roll surround, supported by a powerful triple-stacked strontium ferrite magnet assembly and dual progressive spiders. Drawing on the construction philosophy of AlpineF#1Status, the HDZ-W10 is engineered to reproduce bass with impressive depth, composure and accuracy, even at the most demanding output levels.

Hi-Res Audio Made Accessible

The Alpine Status system features many technologies, components and materials of the AlpineF#1Status system to achieve ultra high-precision music reproduction – at an affordable price tag. It is designed to play music tracks at 192kHz / 24bit format, which are widely accessible in many online stores and streaming platforms. High-Res Audio playback of 192kHz / 24bit allows Alpine Status to create a heightened listening experience in the vehicle that emulates the feeling of an intimate recording studio session.

High-Excursion Capability

Alpine’s HAMR multi-roll surround and dual progressive spiders support the driver’s specified 20 mm of linear excursion, providing the movement needed to reproduce demanding bass passages.

Carbon Fiber Dust Cap & Pulp-Mica Cone Construction

The carbon-fibre dust cap complements the pulp-mica cone, combining premium materials with a focus on structural integrity and controlled cone movement for excellent harmonics. Designed to support consistent performance under demanding conditions, it contributes to the precision and composure required for high-performance bass reproduction.

Premium Alpine Status Grille Included

Supplied with a premium Alpine Status protective grille featuring an aluminium trim ring, designed to protect the subwoofer while complementing the refined aesthetic of the Alpine Status range.

Designed For High Performance Systems

A triple-stacked strontium-ferrite motor and dual progressive spider assemblies underpin the HDZ-W10’s high power-handling capability, making it suitable for carefully matched, high-output audio systems.

Alpine Status Full System

Alpine Status features many components that are optimised in both power and performance as a complete system to play at their intended high-resolution spec for excellent, audiophile sound quality. However, each component can be purchased independently for custom system building.

Premium Build-Quality

A cast-aluminium frame, premium aluminium trim ring and included mesh protective grille combine structural support with a refined, purposeful appearance.

Dual 4 Ohm Configuration

Dual 4-ohm voice coils allow series or parallel wiring, providing 8-ohm or 2-ohm nominal loads respectively when both coils are connected in the corresponding configuration.

Studio Recording Spec

Alpine Status achieves 192kHz/24Bit playback, which is 6.5 times the amount of digital audio data in a standard CD or digital streaming service and exceeds the standard High-Resolution spec of 96kHz/24Bit found in most aftermarket sound solutions. This allows Alpine Status to capture and accurately reproduce details like the breath of the artist or a musician’s subtle interaction with an instrument. This capability not only reproduces music to the artist’s original intention, but emulates the experience of a studio recording in the vehicle.

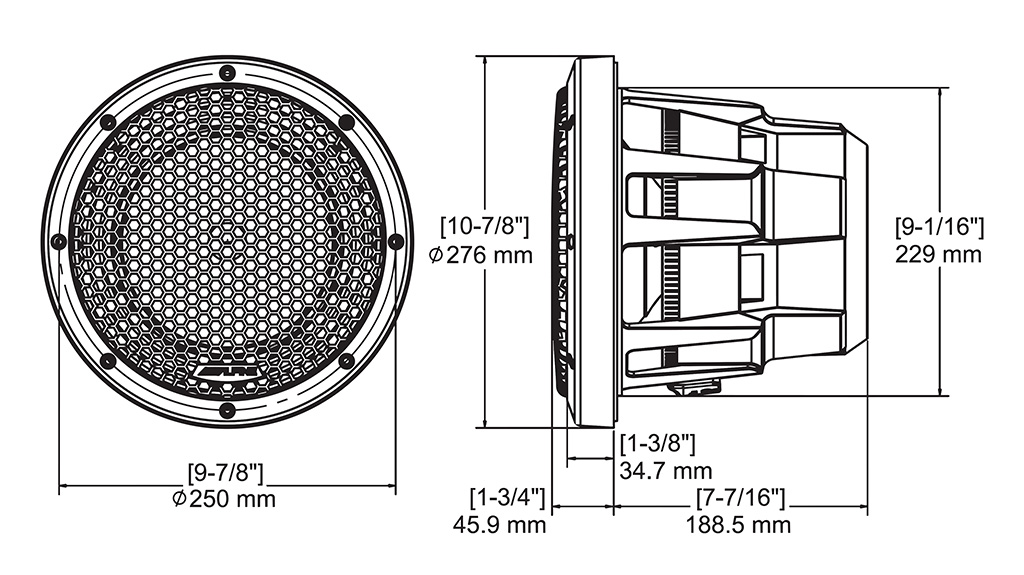

Alpine Status HDZ-W10 Physical Dimensions

The Alpine Status HDZ-W10 features a substantial 10-inch chassis with a precision-engineered cast-aluminium frame. Please refer to the above image or the Owner’s Manual for detailed dimensional data.

Feel a Higher Standard of Bass

With 800 W RMS power handling and a 10-inch cone, the HDZ-W10 is built to deliver substantial low-frequency output. Experience bass that adds weight, depth and physical impact to your favourite music.
